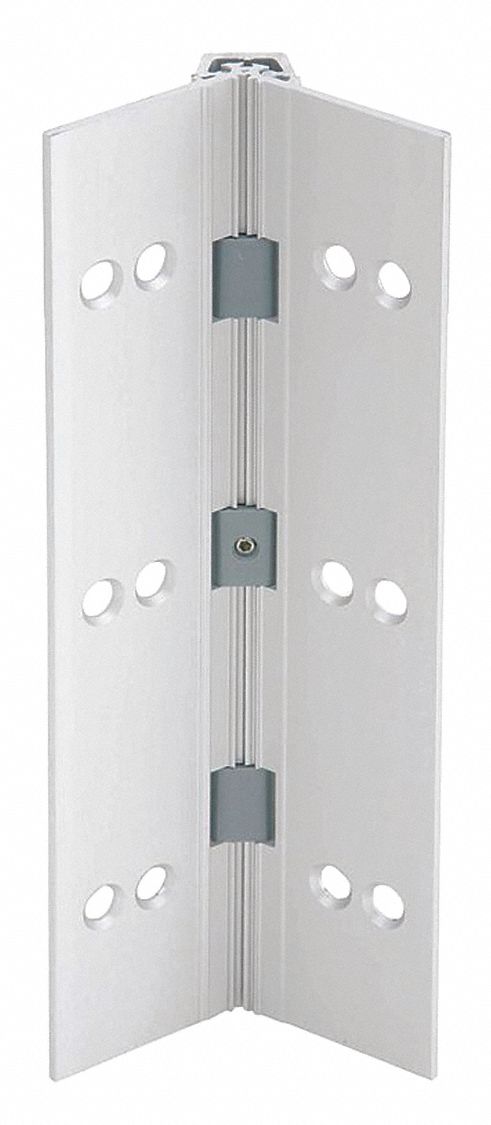

HAGER 780-112HD 83 CLR UL-FF-HT Hinge, Yes, Screw-On, Concealed, Gear, Unfinished

HAGER 780-112HD 83 CLR UL-FF-HT Tech Specs

• Item: Hinge
• Ligature Resistant: Yes
• Mounting: Screw-On
• Bearing Type: Concealed
• Pin Type: Gear
• Finish: Unfinished
• Height: 83 in
• Width: 4 1/2 in
• Leaf Thickness: 0.025 in
• Pin Dia.: 0.25 in
• Holes per Leaf: 19
• Corners: Square
• Material: Aluminum
• Load Capacity: 200 lb
• Color: Silver
• Frame Leaf Length: 3 1/2 in
• Frame Leaf Width: 1 1/2 in
• Door Leaf Length: 3 1/2 in
• Door Leaf Width: 1 1/2 in
• Door Thickness: 1-5/8 in to 1-3/4 in
• Pin Material: Aluminum
• Range of Motion: 180 Degrees
• Hardware: Yes
• Country of Origin: USA
• Shipping Weight: 8.15 lbs.
